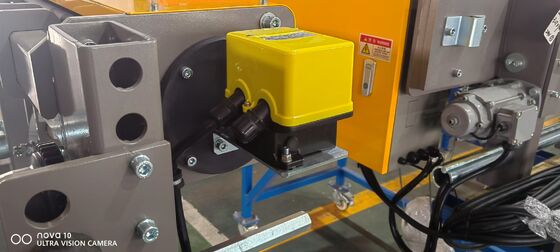

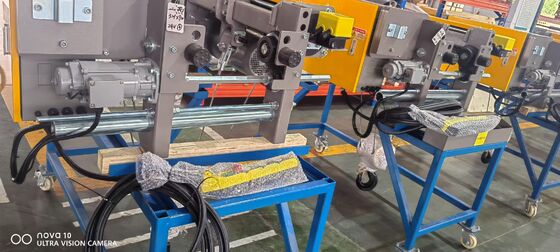

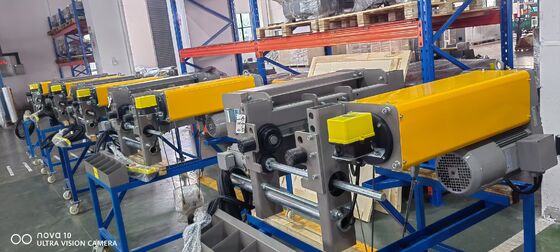

Inventer control 10T Electric Wire Rope Hoist ISO M5 M7 Single Girder
Product Introduction
The European style electric hoist is a new type of electric hoist featuring lightweight, modular, and maintenance-free design. Developed through foreign technology assimilation and optimized configuration with new materials and refined technology, it incorporates German-made lifting motors and reducers. The integrated compact design combines the lifting motor, reducer, drum, and lifting limit switch to save space. Modular design enhances safety while reducing maintenance time and costs. Multiple lifting speed options and pulley speeds are available.
- Lifting capacity: 1-32t
- Lifting height: 6-30m
- Lifting speed: (0.8/5) m/min
- Operating speed: (5-20) m/min
- Power supply: 380V 50Hz 3P or Customized
- Custom specifications available for different tonnage lifting heights and operational requirements
Advantage
Pure Copper Motor
- F-level insulation level and IP54 protection level
- Soft start and good acceleration performance
- High speed and low noise, long service life
High strength steel wire rope
- Adopting high-strength national standard design
- Double headed fixation, sturdy and durable
- Good safety performance and long service life
Variable frequency car
- Variable frequency speed regulation makes operation more stable
- Enhanced operational security
- Greatly improve production efficiency
High quality forged hook
- Thickened steel plate processing integrated molding
- Not easy to break, strong load-bearing capacity
- It can rotate 360 ° horizontally for easy loading and unloading
The key to SHSL European style electric hoist is the improvement of safety and efficiency
The SHSL series of electric hoists has achieved a good reputation for its strong reliability and durability in various environmental applications worldwide
All functions of the new generation SHSL electric hoist have been reviewed, and the entire series of innovative applications provide a new level of user friendliness and performance, resulting in an easy-to-use, high durability lifting mechanism,. The wire rope electric hoist has been designed to meet customer expectations and improve their work efficiency. With increased safety and efficiency
SHSL gourd is an intelligent design that is easy to load and unload
SHSL wire rope electric hoist can reach a maximum of 32 tons SWL
- The maximum lifting height is 30M
- Work level reaches M7
Compared with traditional motor brake hoists, the unique hoist design equipped with gearbox brakes provides higher safety, reliability, and maintainability,
- Load safety has been further upgraded.
- Even in the case of disassembling the hoist motor, or in the event of failure of the hoist motor coupling, motor connection, or motor shaft, the hoist brake can still brake the load.
- The heat generated by the hoist brake will not seep into the hoist motor, ensuring a lower operating temperature inside the hoist motor.
- Greatly improving the ease of operation and maintenance of the hoist brake,
Technical Specifications
| Rated load S.W.L (Kg) |
Work level |
Lifting Height |
Lifting speed |
Traveling speed |
| SHSL-A |
FEM |
ISO |
m |
m/min |
m/min |
| 2000 |
1AM-4M |
M3-M6 |
6/9/12/15/18 |
0.8/5 |
5~20 |
| 3200 |
1AM-4M |
M3-M6 |
6/9/12/15/18 |
0.8/5 |
5~20 |
| 5000 |
1AM-4M |
M3-M6 |
6/9/12/15/18 |
0.8/5 |
5~20 |
| 6300 |
1AM-4M |
M3-M6 |
6/9/12/15/18 |
0.8/5 |
5~20 |
| 8000 |
1AM-4M |
M3-M6 |
6/9/12/15/18 |
0.8/5 |
5~20 |
| 10000 |
1AM-4M |
M3-M6 |
6/9/12/15/18 |
0.8/5 |
5~20 |
| 12500 |
1AM-3M |
M3-M5 |
6/9/12/15/18 |
0.8/5 |
5~20 |
| 16000 |
1AM-3M |
M3-M5 |
6/9/12/15/18 |
0.66/4 |
5~20 |
| 20000 |
1AM-3M |
M3-M5 |
6/9/12/15/18 |
0.66/4 |
5~20 |
Main Components
Electric Hoist FAQ
Q: What's your MOQ?
A: 1 Set
Q: What's your package?
A: Main body in plywood box or in plastic woven cloths; Spare parts in plywood boxes
Q: What's your delivery period?
A: Within 10/25/40 days after your prepayment received; exact period should be based on detailed requirements and actual period
Q: What's your warranty period?
A: One year except the easy broken spare parts
Q: Do you have engineer oversea installation service?
A: Yes; We have, We can provide oversea services
Q: What kinds of products do you have?
A: Electric wire rope hoist; Electric chain hoist; electric winch; Overhead Crane; Gantry Crane; JIB Crane; Portable Crane; KBK Crane; Lifting tools etc.
Q: Could we buy spare parts in local once they are out of work?
A: Our main electrical parts brand is Siemens or Schneider brand; it's very easy to buy all the world. But if there is any difficulty, we can post to you by express, such as DHL, UPS, FEDEX, Aramex, etc.
Q: Do you provide lift tools?
A: Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet, pulley blocks, hook, lock catch, wire rope, fiber rope, etc.
Q: If get the offer, what kind of parameters need to know?
A: For electric hoist, we need to know:
- Lifting capacity
- Lifting height
- Usage
- Power
Once confirmed, we will provide our best offer.
